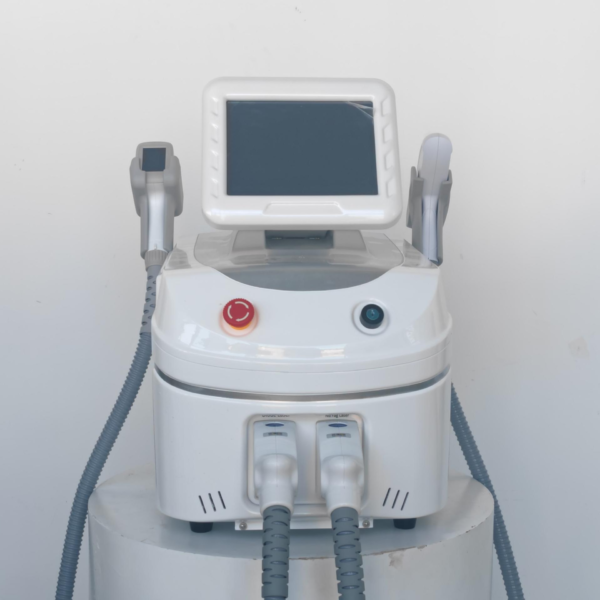

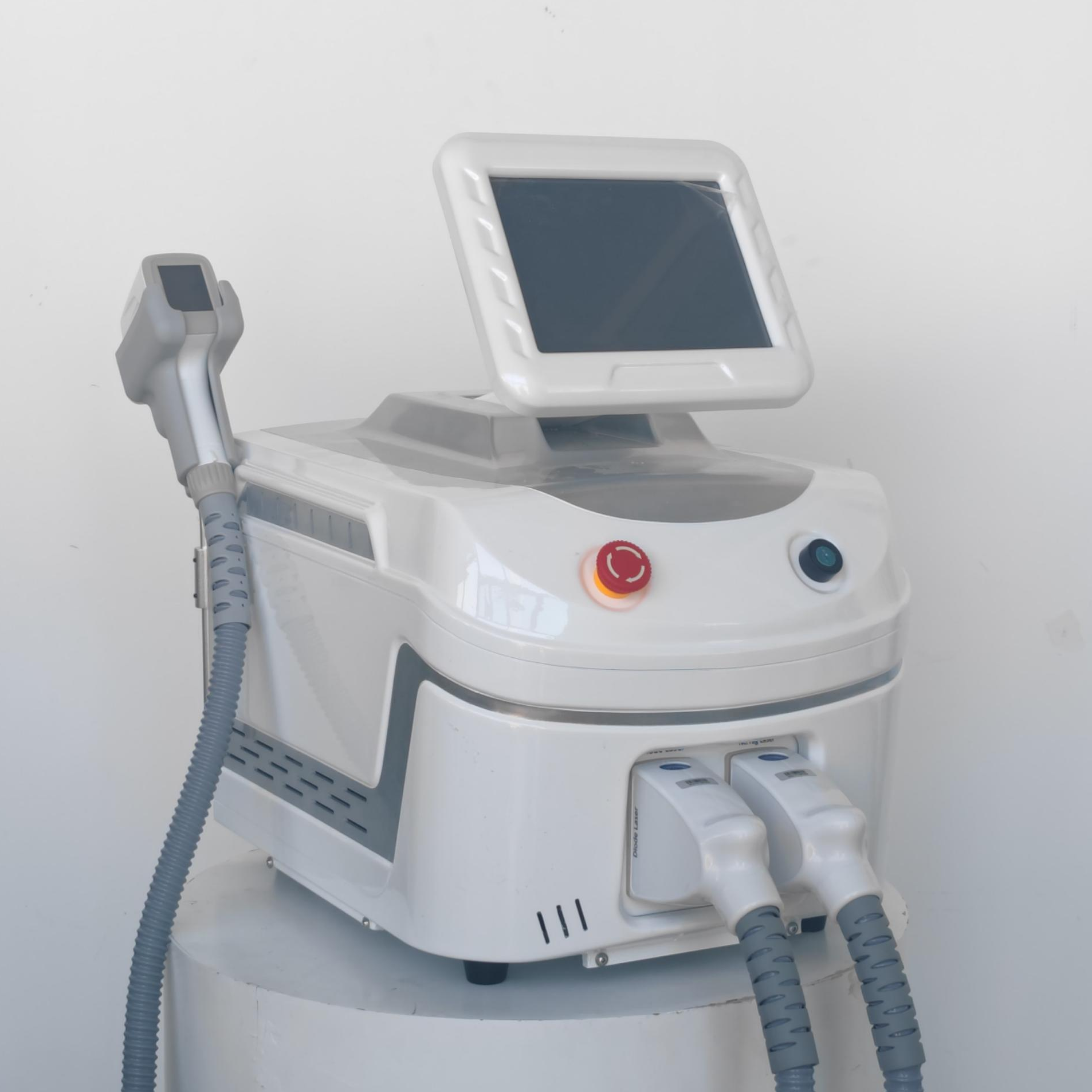

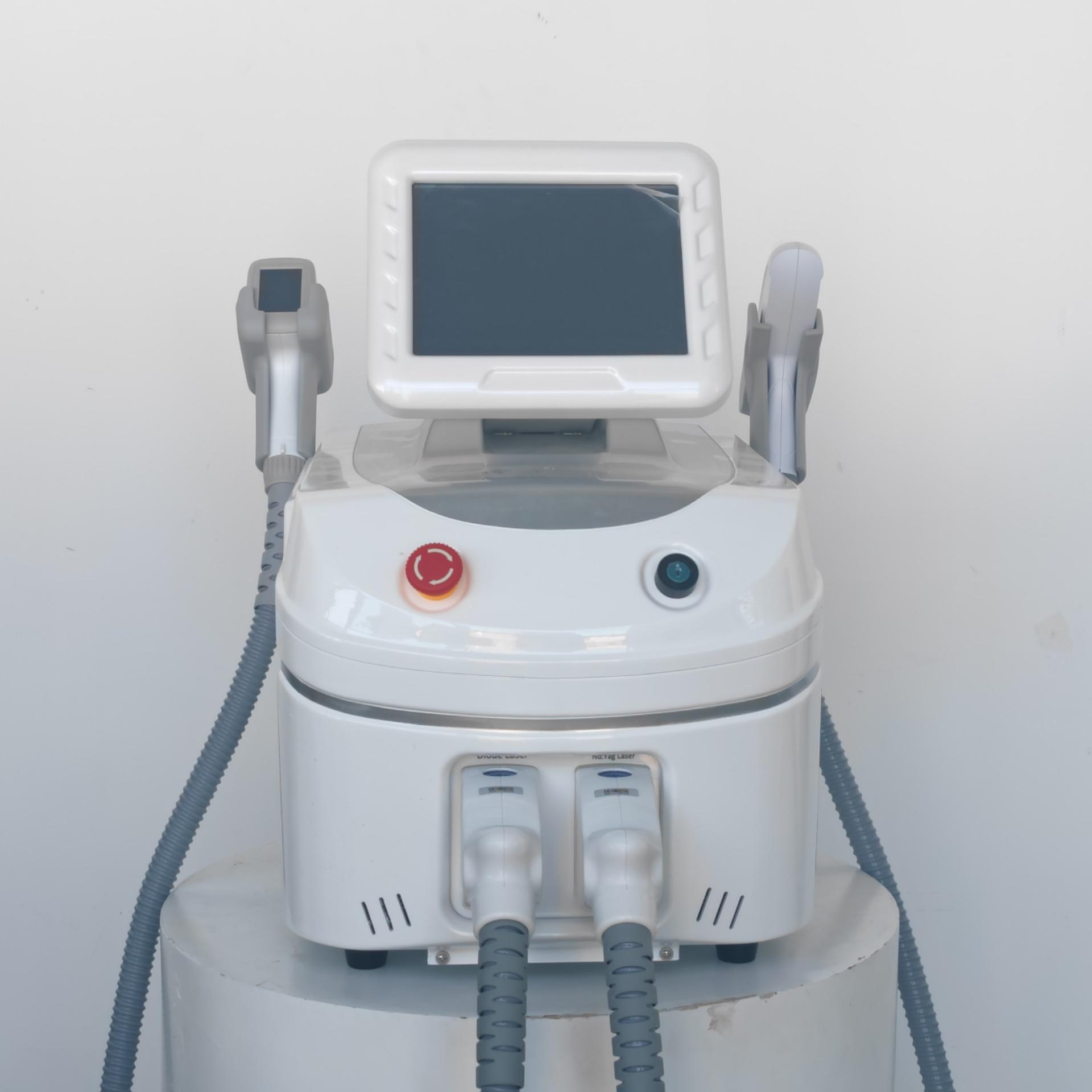

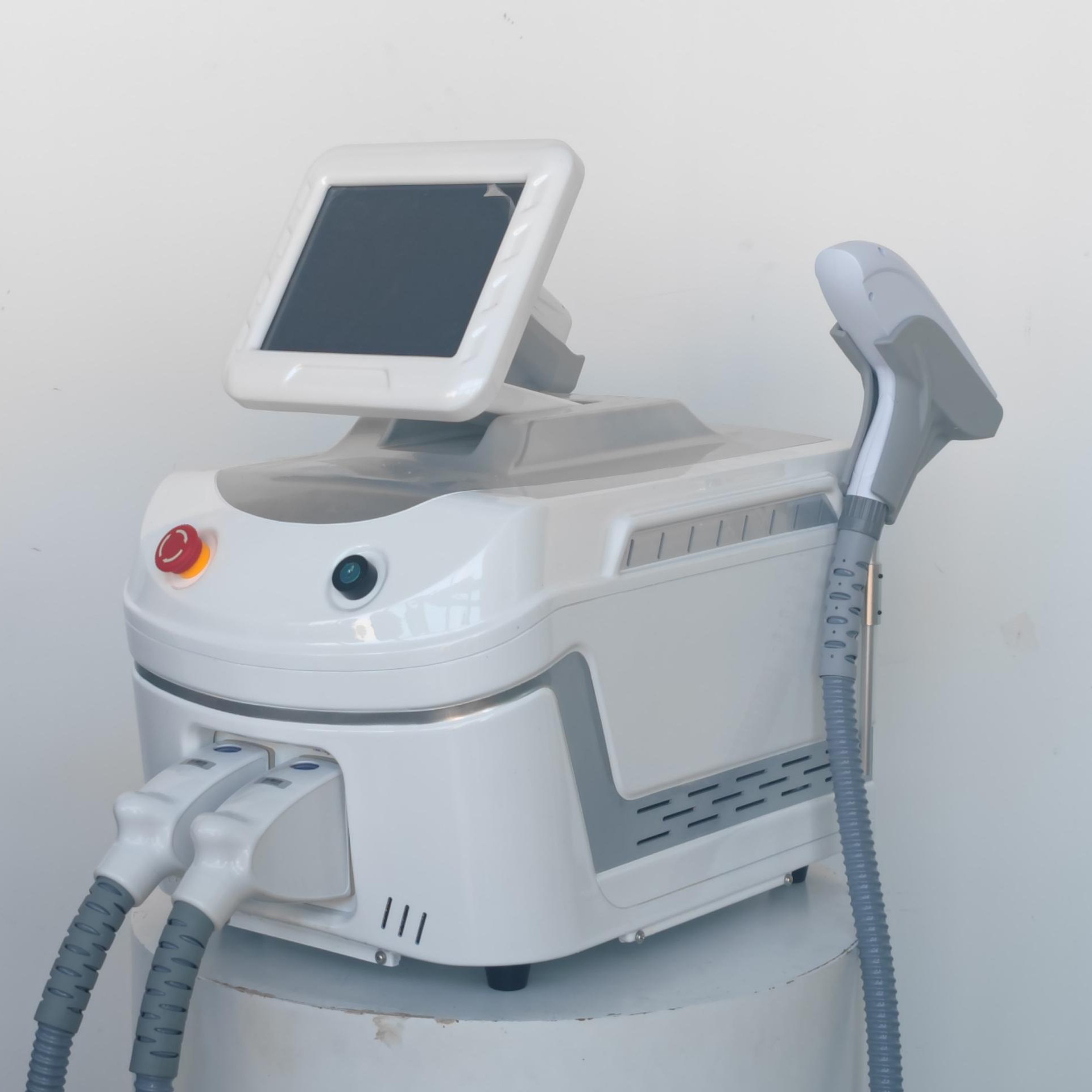

Leading Intelligent Diode Laser ND Yag Laser 2in1 Beauty Machine

Leading Intelligent Beauty Machine ADPL2D  equipped with Diode Laser CH and  ND Yag Laser 2in1 hanepieces,has a simple and beautiful appearance.The functions of the two hands include hair removal, tattoo removal and carbon peeling. It is a portable desktop machine, so the cost performance is very high. I strongly recommend this machine.

Machine Model:  ADPL2D-CH +ND

Equipped hand tools: Diode Laser CH+ ND Yag Laser

• Diode Laser CH: permanent laser hair removal
• ND Yag Laser : colorful and dark tattoo removal, carbon peeling & pigmentation treatment

Suitable For: Beauty salons, clinics, medical centers

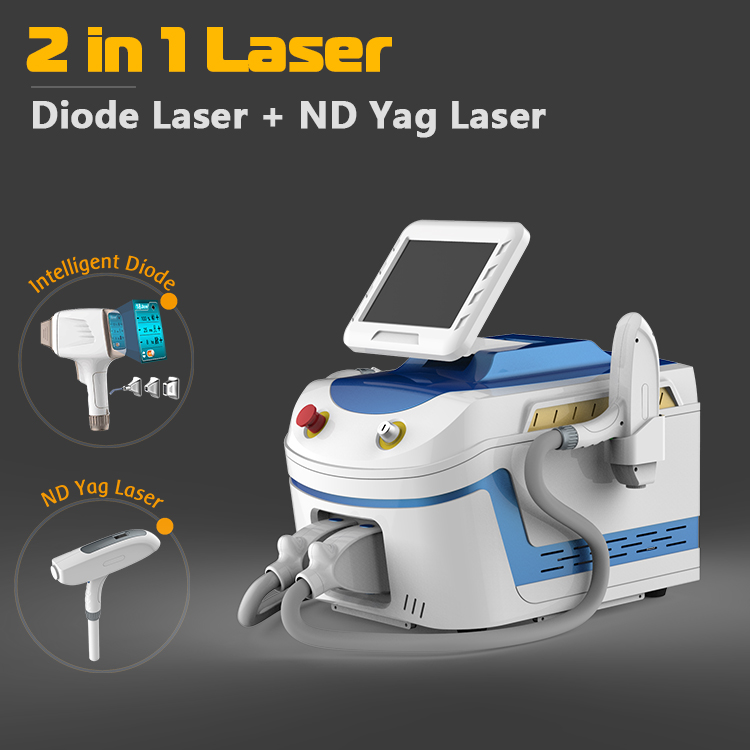

Intelligent  2 In 1 Handle Details

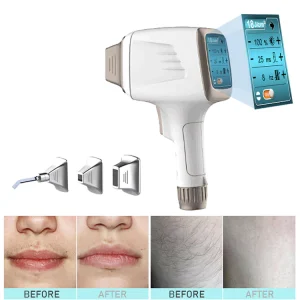

                                                   Diode Laser

1.High-definition intelligent display screen for easy parameter adjustment

2.Three different sizes of treatment heads

3.The machine can automatically identify the treatment head

4.Real-time temperature monitoring

5.360° Refrigeration,painless

6.Remarkable results

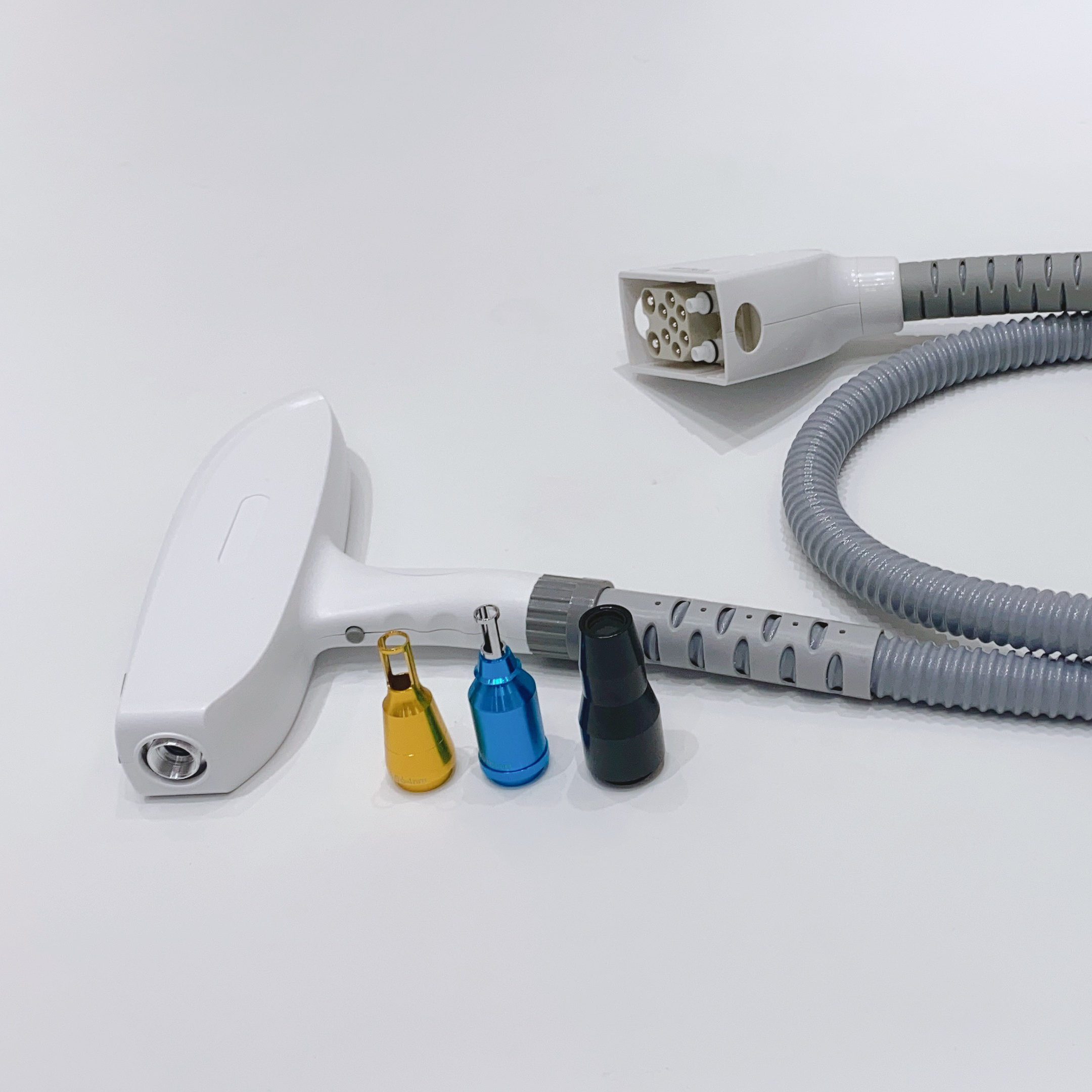

                                                         ND Yag

1. Short treatment course, quick effect

2. Strong energy
3. three wavelengths have multiple functions

532nm: mainly for red,green,yellow tattoo. superficial layer.
1064nm: mainly for black,blue,cyan tattoo. deep layer.
1320nm: mainly for skin rejuvenation with carbon powder, called “carbon peeling”
4. There is another 755nm treatment head  to choose, which has a good freckle removal effect

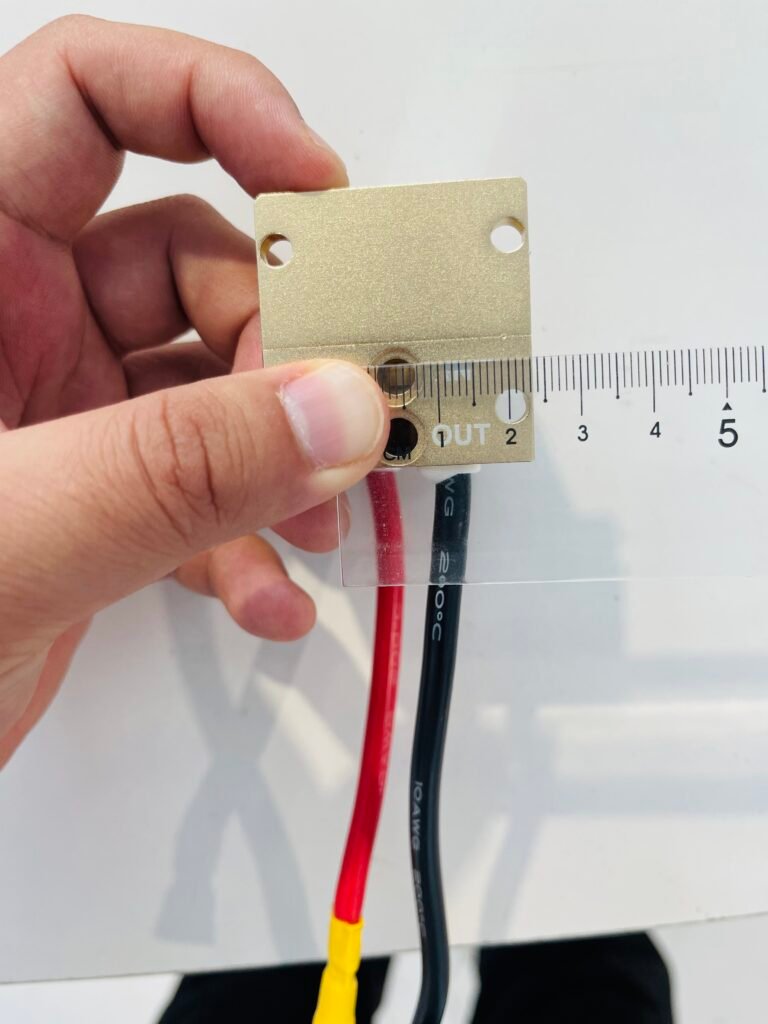

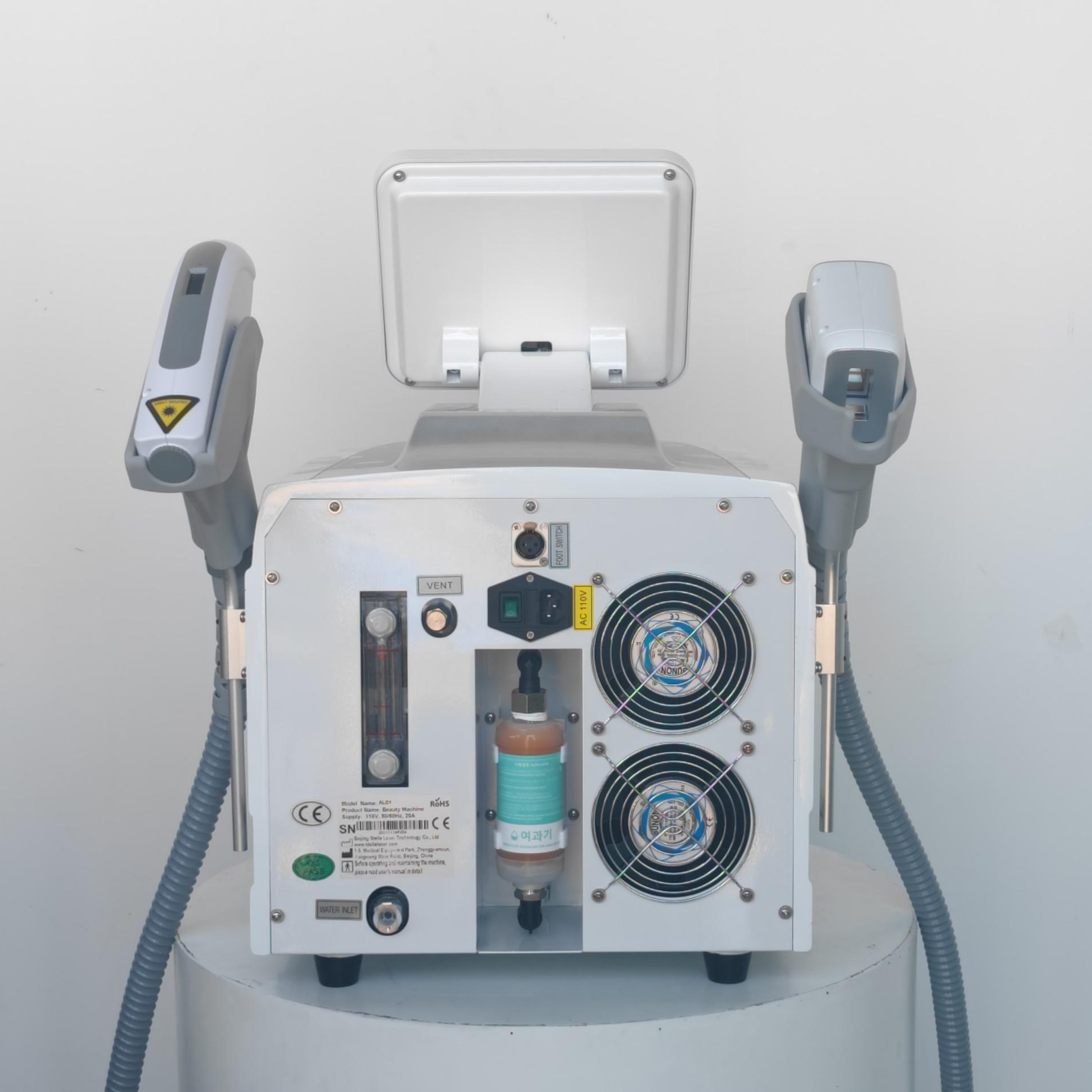

Display  Of  Internal Components Of The Machine



















      Our intelligent beauty machine details also are done very well!

• The internal wiring of the machine is neat and beautiful.
• A small fan is specially designed for the three-in-one switch to continuously dissipate heat. This prevents the interface from softening and is more durable even in summer with high traffic.
• The handle bracket is designed in the shape of the handle for better support.
• Most of the connections between the handle and the machine are designed as knobs for easy disassembly.



Easy Interface & Unique System





                                                           Intelligent Operating

1. You can choose the skin color of the customer and treat different skin colors
2. Select the body part to be treated, the operation is simple
3. Adjust the charging voltage, sub-pulse width, sub-pulse interval, cooling intensity and other parameters when the customer feels slight pain, the energy will change automatically, and the treatment can begin







                                                                  Four Systems

Alarming system:machine alarming doesn’t mean machine has problem.on the contrary,it is machineintelligent self-protection way.

Mornitoring system:In case there is any problem,client can firstly check the monitoring system to know which part is wrong .then we can immediately send the new part.

Treatment record saving system:save the treatment parameter for client so that next time can directly use.You can save different parameters for the same guest, or you can save parameters for different guests.

And Renting system using password:It a great function for distributors who have business of renting machines.It allows distributor to control the machine from a distance.





 Certification Exhibit



All of our beauty instruments have complete certificates and have obtained comprehensive certification. This is very competitive. The quality and after-sales are very guaranteed, you can rest assured to buy our machines，we are full of confidence.

FDA registration number: K212478

Medical CE registration number: HD2264988-1





Intelligent  Machine 2 in 1  Data Sheet

Specifications	Diode Laser		ND Yag Laser
Lifespan	20 million shots		3 million shots
Power	1200W for laser,2400W for power		500W
Spot Size	15*30mm & 15*15mm & φ8 mm		1-10mm
Wavelength	808nm / 755+1064+808nm 3 in 1 triple wavelength		532/1064/1320nm
Energy Density	1-90J/cm2		1000J/cm2
Pulse Frequency	1-10Hz		1-10Hz
Pulse Duration	10-200ms		20-30ns

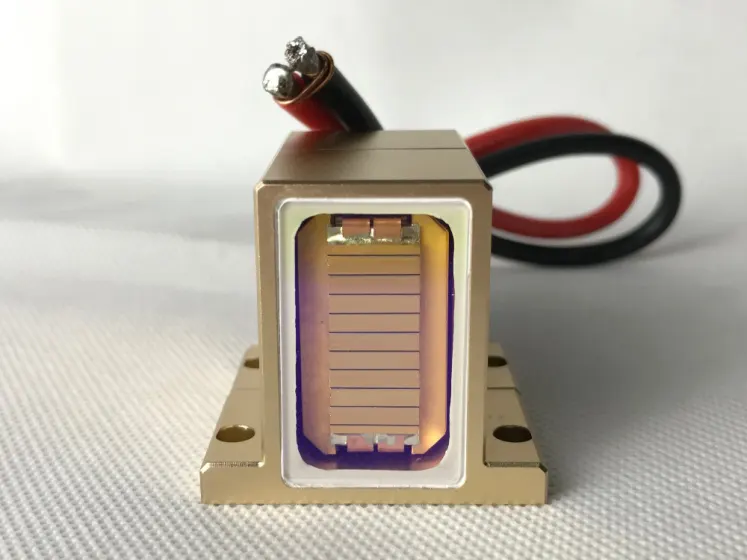

Laser bars/Lamp	US Coherent laser bars		φ6+UK Xenon lamp
Cooling Level	Sapphire Crystal + Air + Water Circulation + Semiconductor +TEC
Display	10.4 inch True Color LCD touchable Screen
Stand-by Working	Continuous stand-by working for 10-12hours
Electrical	100/110V, 50~60Hz, /230V~260V,50~60Hz
Net Weight	33KG	Gross Weight		42KG
Packing Dimension	63*57*52cm (W*D*H)	Volume Weight		40KG
