4 In 1 Laser Diode Nd Yag E-Light IPL SHR RF Multifunctional Salon Device

World’s first 4 in 1 laser with 10 functions, Diode Laser + ND Yag Laser + E-light OPT SHR + RF. It is the ultimate choice for any professional beauty salons and clinic! The best and most advanced 4 in 1 beauty equipment to meet all your demands!

Play Video

Machine Model:  DPL4E-AH

Beauty System Type: Multi function Beauty Equipment 4 in 1 Laser

  • System 1: Diode Laser (permanent laser hair removal)
  • System 2: ND Yag Laser (tattoo removal  and carbon peeling)
  • System 3: IPL SHR OPT (acne therapy, photorejuvenation, skin whitening, hair removal)
  • System 4: RF (wrinkle removal and body lifting)

Suitable For: Professional beauty salons, clinics, medical centers

Certificates: FDA, Medical CE, CE, RoHS, ISO 13485

Highlights Of 4 In 1 Laser Beauty Machine

  • Most advanced technology 4 in 1 Laser multifunctional beauty machine, combine diode laser, q switched nd yag laser, E-light and RF together!
  • Independent power supply for each system, ensures stable and excellent performance
  • Advanced monitoring system, safe and convenient
  • 10 languages available. Intelligent interface, easy to operate.
  • Equipped with Two filters for longer lifespan

What Treatment Can 4 In 1 Laser Beauty Equipment Do?

This 4 in 1 laser combines 4 systems to 1 machine. With 1 machine, it covers all below functions:

  • Laser hair removal
  • Acne treatment
  • Photo rejuvenation
  • Skin whitening
  • IPL hair removal
  • Pigmentation treatment
  • Vascular removal
  • Tattoo removal
  • Mole removal
  • Carbon peeling
  • Wrinkle removal
  • Body lifting
4 in 1 laser functions AH

4 In 1 Laser Handles Details

Diode Laser AH

diode laser AH hair removal

Diode Laser is best in permanent laser hair removal in 4 in 1 Multifunctional Platform. It provides permanent effect and truly painless treatment.

  • Power: 500W
  • Spot Size: 15*15mm classical for full body hair removal therapy
  • Laser Stack: 100% pure AuSn laser bars from US Coherent
  • Lifespan: Ensure 20 million shots super long lifespan, at least 4-5 years normal using
  • 100% True Sapphire skin contacting cooling technology
  • Feature: Equipped with unique double cooling systems, treatment tip Sapphire skin contacting cooling plus the extra cooling tip  for  pre and post cooling for the hair removal area, ensure truly painless treatment.


IPL hair removal photo facial machine

Our E-light system will come with 5 changeable filters with different functions:

  1. 480nm~1200nm: Acne treatment
  2. 530nm~1200nm: Vascular treatment, photofacial for light skin.
  3. 590nm~1200nm: Pigmentation treatment, photofacial for dark skin.
  4. 640nm~1200nm: Hair removal for light skin
  5. 690nm~1200nm: Hair removal for dark skin

Also with below features:

  • Super long lifespan of 1 million shots (Amazing lifespan! Our competitor’s IPL only 300,000 shots, much shorter than ours!)
  • Xenon lamp from UK
  • Spot size: 15*50mm or 12*30mm
  • Working modes: SUPER mode 1-10 hz in 1 second and IPL mode 1-6hz in 1 second.

ND Yag Laser

NDYAG tattoo removal carbon peel

The ND Yag Laser system will come with 3 treatment tips:

Upgraded to 3 replaceable treatment tips:

  • 532nm: mainly for red and brown pigmention treatment, such as of epidermal pigmentation, freckles, solar lentiges, epidermal melasma, etc
  • 1064nm: mainly for black and blue pigmention treatment, such as tattoo removal, dermal pigmentation, Nevus of Ota, Hori’s Nevus etc
  • 1320nm: Non-ablative Laser Rejuvenation (NALR-1320nm) using carbon peel for skin rejuvenation

Also with below features:

  • Super long lifespan of 3 million shots
  • Xenon lamp from UK. Yag bar size Ø6
  • Energy: Up to 1600mj standard (Other similar machines only to 1000mj)
  • Frequency: 1-10hz fast treatment

Radio Frequency

RF wrinkle removal

RF-lifting skin tightening is a modern treatment based on radio waves. It’s a safe and effective and does not require downtime

Patients can see skin tightening immediately after treatment. With proper skin care, results can last for two to three years.

Our RF system come with 3 treatment tips:

  1. Small tip: for eye round wrinkle removal
  2. Middle tip: for facial lifting
  3. Big tip: for body lifting

Also with below features:

  • Different with the cheap RF system, our RF has water cooling ensures more comfortable therapy
  • 10Mhz power for safe operation, never burnt
  • Unlimited lifespan, no comsumable parts at all!

High Quality Parts We Use In 4 In 1 Laser

4 in 1 laser beauty machine inner structure
  • 2000W power supply for diode laser system, 2000W power supply for E-light (IPL SHR E-light) system, 500W power supply for ND yag laser system, 100W power supply for RF system
  • Double Korea imported water filters, to filter out the impurities and ions from water, so that can protect our US Coherent laser bars and UK imported xenon lamp very well, thus can greatly prolong the lifepsan of machine.
  • 2 thickest aluminum radiators plus 4 big fans to ensure the excellent heat dissipation effect. Heat dissipation system is very important for the lifespan and quality of the machine.
  • Copper radiator V.S. Alum radiator: some companies may use the copper radiator and say copper radiator is better. That is a huge mistake, indeed copper has better heat conductivity, but it also produce copper rust which is easy to pollute the water and burn the xenon lamp.
  • 2*22000uf big capacitors imported from Japan for the E-light system; 120uf capacitor for the nd yag laser system.
  • 8L stainless water tank
  • Latest brushless DC water pump, with lift 15m. Compare with the outdated magnetic drive pump, the brushless DC pump we use has much lower noise and much higher water flow speed. High water flow speed means it can take away the heat very quickly and protect the machine.
  • Schneider switches
control board 180x180 1

Self developed control board with isolated technology

switch power 180x180 1

Schneider switch power supply, air switch and A.C. contactor

connectors 180x180 1

German medical grade connectors with high quality

water filters 180x180 1

Double Korea imported water filters prolong machine lifespan

water tank 180x180 1

Transparent Acrylic water tank, strong and easy to check

Independent Power Supply In 4 In 1 Laser Beauty Instrument

independent power supply for each system

Most importantly, we use independent power supply for each system in this 4 in 1 beauty instruent, this can ensure each system has strong and stable energy!

User-Friendly Interface for 4 in 1 laser

This 4 in 1 Laser Beauty Laser is very easy to operate. The software is designed by our engineer with preset therapy parameters and even starters can use it so easily!

  • Intelligent operating system
  • Pre-set parameters Treatment records saving
  • 15 Languages available
  • Monitoring system
  • Alarming system
  • Renting mode
  • Saving client treatment data

Alarming System

Including water level alarming, water flow speed alarming, water temperature alarming, water impurity alarming and handle status alarming.

Record Saving System

Save up to 60000 clients treatment parameters. Allows to customize the best therapy parameter for each client!

Monitoring System

Monitoring the spare parts working status inside of the machine. Ensure machine in best working status all the time!

Rental System

Want to rent this machine to other beauty salons? This rental system allows to rent machine by days and by shoots. Choose the best way you need!

Before & After

Specification Of 4 In 1 Laser

Lifespan20 million shots1 million shots3 million shotsUnlimitted
Power500W for laser, 2000W for power2000W800W100W
Spot Size15*15mm (25*25mm cooling tip)15*50mm  (or 12*30mm)1-10mm3 tips
Wavelength808nm / 755 808 1064 mixed480 / 530/ 590/ 640/ 690-1200nm532/1064/1320nm/
Energy Density1-166J/cm2E-light: 1-50J/cm2; SHR: 1-26J/cm21000mJ/cm2 1-50W
Pulse Frequency1-10Hz1-10Hz1-10Hz
Pulse Duration10-400msE-light: 1-10ms; SHR: 1-15ms20-30ns1-10Hz
Laser Bars/ LampUS Coherent laser barsUK Xenon lampΦ6 + UK Xenon lamp/
Cooling Level Sapphire Crystal + Air + Closed Water Circulation + Semiconductor +TEC
Display 12.4 inch True Color LCD touchable Screen
Stand-by Working Continuous stand-by working for 10-12hours
Electrical 100/110V, 50~60Hz, /230V~260V,50~60Hz
Gross Weight75KG
Packing Dimension 63*60*116cm (W*D*H)


Diode laser 20 million shots, E-light IPL SHR and Nd yag laser 1 million shots, RF unlimited shots

We offer 1 year free warranty and lifetime after-sales support for the 4 in 1 laser beauty device Diode + ND Yag + Elos + RF Laser Machine

After we get the payment, we will ship within 3-7 working days. Usually it takes about 5-7 days for DHL/ FEDEX/ UPS shipping. So totally after 14 days you will get machine at your door.

Yes. Please send us high quality logo picture in PNG or AI format. We will put to machine interface and shell. This is a free service.

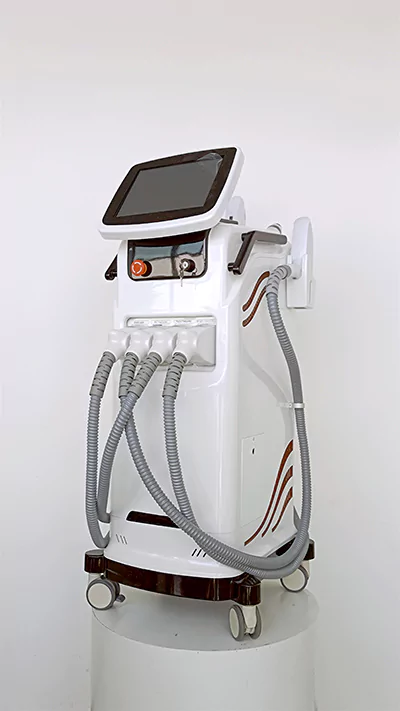

Machine Photos
