diode laser hair removal device

China High Quality Diode Laser Hair Removal Device

Stelle Laser is proud to offer you a unique Diode Laser Hair Removal Device. With advanced laser technology, hybrid triple waves are delivered to the hair follicles, damaging them. Once damaged, it will eventually fall. This is a step-by-step process that reduces the amount of hair in the area of ​​interest with each session. This hair reduction device is widely suitable for Fitzpatrick Skin-Type from I-IV. Both women and men can benefit from this advanced hair removal technology.

Play Video

Machine Model:  ALD1B-AH

Beauty System Type: Diode Laser Hair Removal Device

Functions: Permenanet laser hair removal

Suitable For: Professional beauty salons

Diode Laser Hair Removal Device with the gold standard embraces a metal framework structure so that almost everything (power supply, water tank, control board, pump and much more) can be protected. The water circulation components and electric elements are separated. It is designed and examined by laser hair removal China producer – Stelle Laser.

The diode laser emitter is from Germany. The Germany diode laser bars have very long and durable lifespan. We utilizing Korea imported filter to clean and purify the water. A great water system can greatly prolong the lifetime of the diode laser hair removal device.


Classical Diode Laser Hair Removal Device, affordable price, satisfied effect! ALD1 Diode Laser Hair Removal Device is the golden standard of unwanted hair removal. The ALD1 laser uses innovative technology, which has doubled its efficiency.

  • Laser lifetime of 20 million pulses.
  • The cooling element is located next to the head
  • Spot size 15x15mm
  • Power 500W
  • Average power generation speed 20 J / 60ms
  • Wavelength – 808 nm / Triple wavelengths

Advanced Diode Laser Hair Removal Technology

All professional Diode Laser Hair Removal Devices use handpieces that emit a laser onto the skin. It is important to know the difference in handpiece technology.

Diode lasers use the contact cooling between the tip of the handpiece and the skin, using a transparent ultrasonic gel as the medium. The clear ultrasonic gel helps keep skin cool as the handpiece glides over skin, while the diode cooling tip provides cooling for comfort.

Diode lasers are known to be the best option for quickly completing laser treatments and reducing downtime. Operators have two different therapeutic approaches using diode lasers: 1 pass with high energy or 2. with low energy, high rate of fire and multipath approach.

Diode Laser Hair Removal Device are safe and effective for all skin types. It is an affordable professional laser hair removal device that can be used non-stop throughout the day.

Professional laser hair removal devices that use diode technology can have multiple wavelengths on the same device, such as 755nm alexandrite and 1064nm Nd:Yag, but 808nm is the most common.

808nm lasers have been extensively studied and shown to be very safe and effective on all skin types, making them the preferred laser wavelength.

Diode Laser Hair Removal Device Data Sheet

Lifespan20 million shots
Laser Power500W
Machine Power2000W
Spot Size15*15mm & 25*25mm for extra cooling tip
Wavelength808nm or triple wavelengths 755 808 1064
Energy Density1-166J/cm2
Laser Source100% pure AuSn US Coherent laser bars
Cooling SystemWater + Air + TEC + Sapphire
Display10.4 inch touch screen
Net Weight30kg
Gross Weight38kg
Volume Weight38kg
Packing Size63*57*52cm

Treatment Range & Effect

Hair removal for the whole body, including the back, chest, forehead, leaves, cheeks, upper lip, armpits, whole legs, fingers, bikini, ear hair and nose hair removal.

Actually Diode Laser Hair Removal Device also has a good effect on skin whitening, skin tightening, pigmentation correction and other skin rejuvenation.

After 3-5 treatments, the patient can get a permanent hair removal effect.

And after the first use, more than 80% of the hair will disappear! After the first period, you can see very obvious results!

Why Buy This Diode Laser Hair Removal Device?

Patent Diode Laser Handle

  • Classical spot size 15*15mm
  • Extra cooling head 25*25mm
  • Cooling system: air + water + TEC + Sapphire
  • Super good cooling effect, truly painless
diode laser hair removal device leg hair removal

Amazing Cooling, Truely Painless!

This machine using the most advanced CIA and ICE technology to ensure the super cooling effect. 100% ensure totally painless hair removal treatment!

CIA™ Technology- Cooling In Advance
It uses 25mm * 25mm TEC cooling tips to cool the skin before, during and after treatments. It can protect the epidemis from hurt,reduce the pain during hair removal, and increase the comfort for patients.

ICE™ Technology – Simultaneous contact cooling
It is an advanced technology that cools the skin continuously during treatments. It minimizes the risk of burns on the epidermis while maintaining heat to penetrate dermis where hair follicles are.

Diode Laser AH cooling

Mixed Wave Available

When deciding which professional laser hair removal device is best for your business, it is important to understand which skin type you use in your business. Not all laser wavelengths are suitable for all skin types.

755nm alexandrite: Very high melanin absorption makes it unsuitable for skin types 4, 5 and 6 and most suitable for skin types 1, 2 and 3 and is very effective for hair removal.

808nm or 810nm diode: The 810nm diode laser wavelength is the most versatile wavelength that can be safely and effectively used for all skin types, so the 810nm wavelength is the best laser wavelength for professional laser hair removal devices.

1064 nm Nd: Yag: 1064nm Nd: Yag wavelength is a laser wavelength that is safe for dark skin and is considered a safe option for skin types 5 and 6.

diode laser AH triple wave

Easy to Change Water Filters

For this diode laser hair removal machine, we have special design with water filter. Water filters are outside of machine, no need to open machine shell, even salon girls can change water filters very easily.

Diode Laser Hair Removal Device Working Theory

808nm laser hair removal principle

Diode Laser Hair Removal Device is based on the selective dynamics of light and heat.

The laser goes through the skin surface to reach the root of hair follicles; light can be absorbed and converted into heat damaged hair follicle tissue, so that hair loss regeneration without injury surrounding tissue.

Slight pain, easy operation, the most safe, technology for permanent hair removal now.

Diode 808 Laser Hair Removal Machine adopts golden 808 nm, particularly effective to hair follicle melanocytes without injury surrounding tissue. The laser light can be absorbed by hair shaft and hair follicles in the melanin, and converted into heat, thus increasing the hair follicle temperature. When the temperature raises high enough to irreversibly damage the hair follicle structure, which disappear after a period of natural physiological processes of hair follicles and thus achieve the purpose of permanent hair removal

FDA and Medical CE for diode laser

FDA & Medical CE Approved

We have passed the most strict US FDA and TUV Medical CE test and our Diode Laser Hair Removal Devices are well certified. In China, now no more than 10 companies has passed both FDA and Medical CE. We can 100% ensure the high quality!

FDA registration number: K212478

Medical CE registration number: HD2264988-1

Smart & Easy Interface

This Diode Laser Hair Removal Device has very easy use interface. Machine has installed 15 main languages to meet worldwide clients’ demand. And meantime it has 4 systems which makes it very easy to use and maintainance. The systems are:

easy interface for beauty lasers


Yes, sure! With machine we will send you very detailed user manual with recommended treatment parameters for different areas. We also have online training videos in YouTube. Besides, if you need any help, we can also make video call by WhatsApp to guide you.

1 years free warranty and lifetime free after-sales service is offered for all Hair Removal Diode Machines.

After payment, we need 5 days for production and testing, shipping takes 7-9 days, Totally after 2 weeks you can get it at your door.

Yes we offer free logo service for all our models. We can put your logo to machine software and machine shell. It is free service

Yes! Treatment by Diode Laser Hair Removal Device is very effective and it is permanent! Hair becomes ineffective in the treatment and plunges into a long “sleep”.

A certain percentage of these “dormant” hair follicles are actually dead and no longer grow hair. In most cases, each treatment kills additional hair follicles until all hair is gone forever.

In many patients, the skin turns slightly pink within 1-2 days. In others (usually more balanced patients), there is no pink color after laser hair removal. Hair begins to fall out after 5–14 days and may persist for several weeks.

Avoid sun exposure approximately 10 days prior to laser hair removal. In certain situations with skin pigmentation and sunburn, it is recommended to apply the gel to the affected area a week before the procedure. Do not bleach, tweeze or wax your hair for at least 2 weeks before your procedure. You can shave the area.

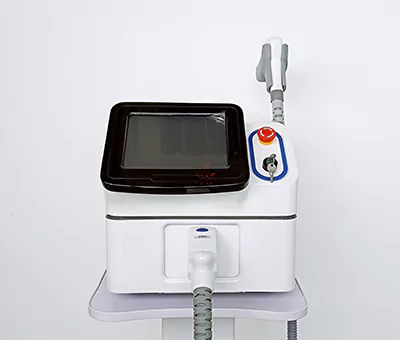

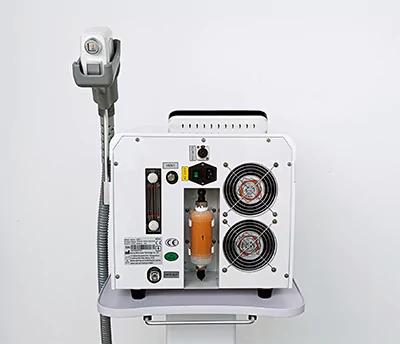

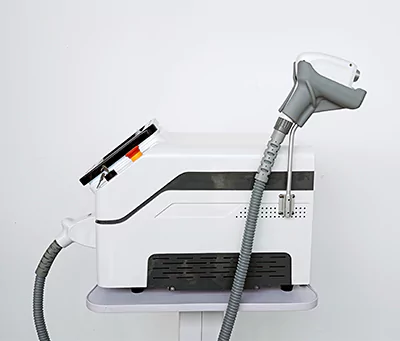

Machine Photos
